The BAFANG 48V 750W Mid Drive Electric Bike Conversion Kit – A Comprehensive Review

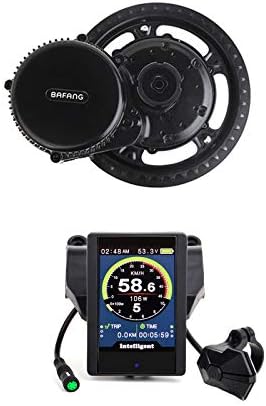

Looking to convert your traditional bike into an electric one? The BAFANG 48V 750W Mid Drive Electric Bike Conversion Kit with HMI Display is a powerful and efficient kit that promises to transform your regular bike into an electric powerhouse. This conversion kit comes with a BBS02B 8FUN Mid Motor, a 48V Ebike Battery, and all the necessary components to make the transformation seamless. In this comprehensive review, we will delve into the specifications, features, and overall performance of the BAFANG 48V 750W Mid Drive Electric Bike Conversion Kit, providing you with all the information you need to make an informed decision before purchasing this product.

Purchase Note: Fit for the Bike Bottom Bracket 68 – 73mm

Before delving into the details of the product, it’s important to note that the BAFANG 48V 750W Mid Drive Electric Bike Conversion Kit is specifically designed to fit bike bottom brackets with a measurement of 68 – 73mm. The inner diameter of the bracket should not be less than 33.5mm. Additionally, the kit comes with 8 gaskets in the parcel to help fit bottom brackets measuring 73mm.

Motor Specification

The motor included in the BAFANG 48V 750W Mid Drive Electric Bike Conversion Kit is a powerhouse, boasting a power output of 750W and a voltage of 48V. The controller current is 25A, and the motor’s efficiency exceeds 85%. Additionally, the motor is equipped with a PAS speed sensor and has a waterproof grade of IP65, making it suitable for various weather conditions. With a maximum torque of 160 N.m and a reduction ratio of 1:21.9, the motor promises impressive performance. The motor can operate in temperatures ranging from -20℃ to 45℃ and can reach a maximum speed of 52km/h under specific load and work conditions.

48V 12Ah/14.5Ah/17.5Ah Hailong Battery Specifications

The BAFANG 48V 750W Mid Drive Electric Bike Conversion Kit comes with a 48V Hailong battery available in three different capacities: 12Ah, 14.5Ah, and 17.5Ah. The battery utilizes Samsung 29ET and 35ET cells and offers a max constant discharge current of 30A. It also features overcharge, over-discharge, over current, short circuit, and balance protection functions. With a cycle life of 2000 times, the battery promises durability and longevity, making it a reliable power source for your electric bike conversion.

Packing List

When you purchase the BAFANG 48V 750W Mid Drive Electric Bike Conversion Kit, you can expect a comprehensive packing list that includes everything you need to complete the conversion. The kit includes the BBS02B 48V 750W Mid Drive Motor, a speed detecting sensor, chain wheel (available in options of 44T, 46T, 48T, and 52T), a display (options include DPC18, 750C, 8520C, P850C, C965, C961, SW102, and 500C), a pair of brake levers, a thumb throttle, installation screws and nuts, a 1T4 cable, a crank, and various gifts such as a headlight, wrench, removal tool, and an XT60 cable. Additionally, 8 gaskets are included for bottom brackets measuring 73mm, ensuring a tailored fit for your specific bike.

Performance and User Experience

Many users have reported a significant improvement in their biking experience after installing the BAFANG 48V 750W Mid Drive Electric Bike Conversion Kit. The motor’s power, torque, and efficiency have been praised, with riders noting that the kit provides ample power for uphill climbs and challenging terrain. The inclusion of a PAS speed sensor has also been highlighted as a valuable feature, providing a smooth and responsive riding experience. Additionally, the customizable display options and the comprehensive packing list have been lauded, offering users the flexibility and convenience they desire when converting their bikes to electric.

Installation and Compatibility

Installing the BAFANG 48V 750W Mid Drive Electric Bike Conversion Kit is a straightforward process, provided that your bike’s bottom bracket falls within the specified dimensions. The inclusion of 8 gaskets for bottom brackets measuring 73mm ensures that the kit is compatible with a wide range of bike models. However, it’s essential to verify the compatibility of your specific bike before making the purchase. Additionally, the comprehensive installation screws and nuts, along with the inclusion of a removal tool, make the conversion process accessible to riders with varying levels of technical expertise.

Conclusion

The BAFANG 48V 750W Mid Drive Electric Bike Conversion Kit offers a powerful and efficient solution for transforming your traditional bike into an electric powerhouse. With its high-performance motor, durable battery, comprehensive packing list, and user-friendly installation process, the conversion kit provides a compelling option for riders looking to upgrade their biking experience. Whether you’re seeking an extra boost for challenging terrains or a more convenient commuting solution, the BAFANG 48V 750W Mid Drive Electric Bike Conversion Kit delivers on its promise of performance, reliability, and user satisfaction.
